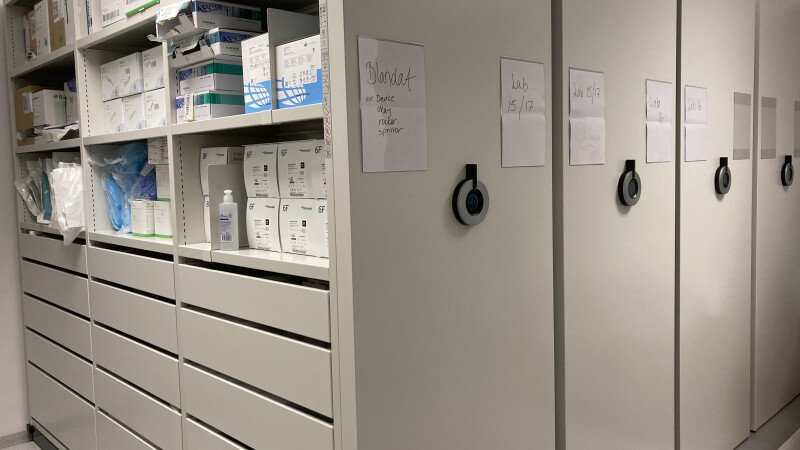

Electronic drive system

Compactus Mechanical or Electronic Electronic

drive system-Dynamic II

Electronic Drive system

To customize your Compactus® mobile shelving system you can choose to have an electronic drive system. The mobile shelving system will be equipped with an electronic user interface with an energy save mode. You can either use the touch screen or the small handle to open an aisle. The Dynamic II comes with a variety of features, both standard and optional.

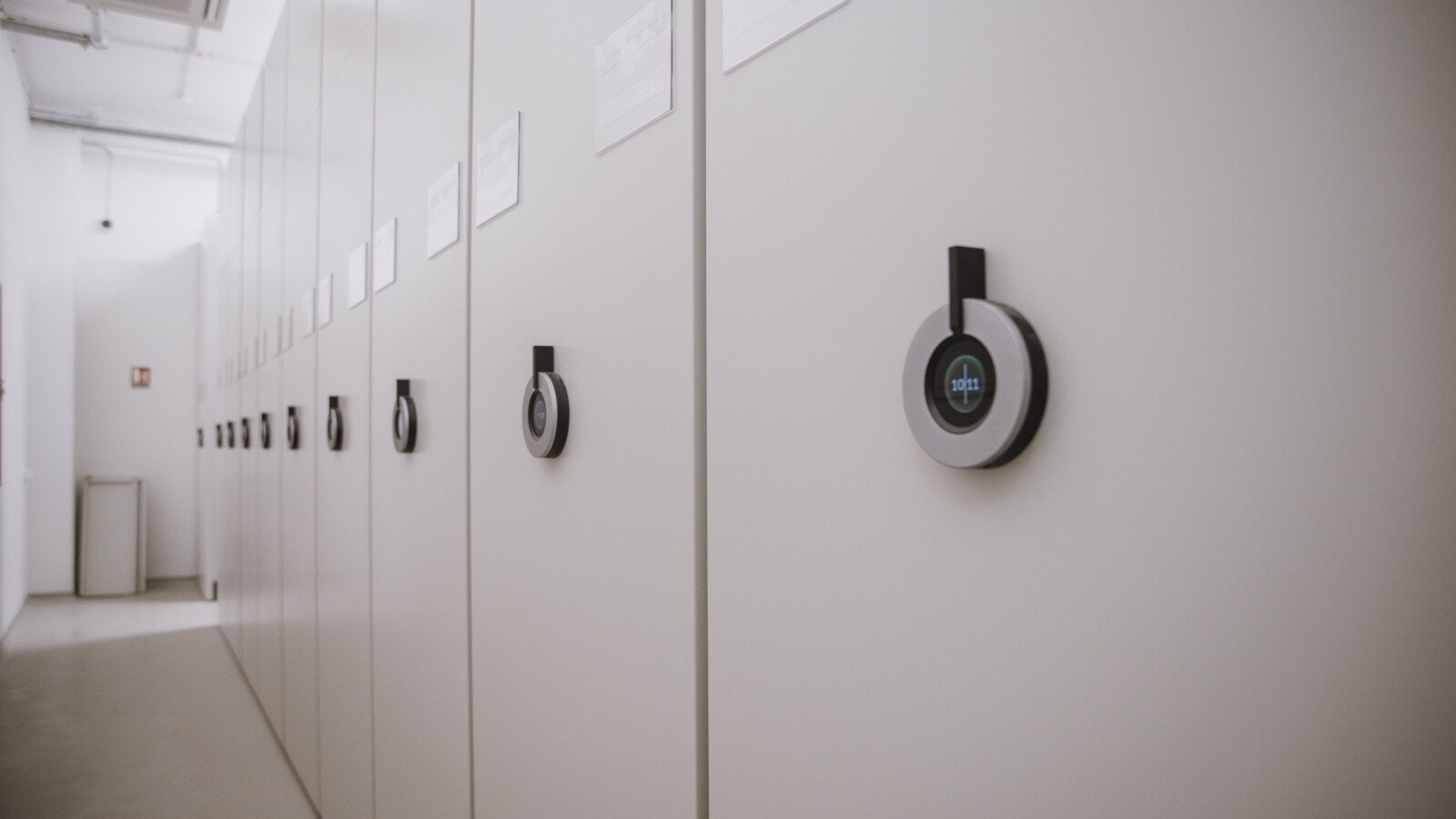

Key benefits of the dynamic II drive system

Key features of the dynamic II drive system

Operation

Motion control
Block movement
Remote control ControlMaster^®

Safety features

Blockage detection (MCMS)
Photocells
SafetyMaster^®
Visual Safety (Passive safety)

Emergency

Manual override
Fire park
Battery back-up

Access & Security

Access control
SecurityMaster^®

Functional features

Ventilation
Library Mode
LED lighting

operation

Motion control

Experience Low Vibration Movement: Our mechanical mobile shelving system boasts a "soft start soft stop" feature, minimizing vibration for optimal preservation of delicate volumes and museum collections. With this standard feature, enjoy smooth and gentle movement, ensuring the utmost care for your valuable items.

Operation

Block Movement

Maximize Efficiency with Our Electronic Mobile Shelving System: Seamlessly move a full system of up to 21 aisles simultaneously, ensuring consistent and controlled motion. This advanced capability eliminates the risk of collisions and damage to stored items, guaranteeing a smooth, efficient, and ergonomically designed operation for your staff.

operation

remote control

Introducing ControlMaster Functionality to Dynamic II Mobile Storage Systems: With the Dynamic II ControlMaster® app, users can effortlessly open the desired aisle using their mobile phone or tablet. This innovative feature not only provides ease of access but also integrates collection management system functionalities, enhancing convenience for our customers.

Learn more

Safety Features

Blockage detection (MCMS)

Motor Current Monitoring System (MCMS) with Active Retraction: Our system incorporates advanced technology to detect pressure against a moving mobile shelving unit. Upon detecting an increase in pressure, the MCMS initiates a safety stop, prompting the shelving unit to retract approximately 4 inches. This proactive measure ensures the safety of individuals and prevents entrapment or injury, demonstrating our commitment to safety and innovation.

Safety Features

Photocells

Safety features

Safetymaster^®

Engineered with Safety in Mind, Introducing SafetyMaster®: Our innovative SafetyMaster® combines multiple systems into one elegant unit, dedicated to ensuring the safety of both users and products.

Learn more

Safety features

Visual safety (Passive safety)

Introducing Enhanced Safety Feature: Prioritizing user safety, our system includes a feature that mandates users to verify if an open aisle is occupied by another user. Confirmation of an empty aisle is required by touching both control panels located to the left and right of the open aisle. Once confirmed, the system grants access to open another aisle, ensuring a secure operating environment for all users.

Emergency

Manual override

Introducing Backup Functionality for Uninterrupted Access: Our electronic system is equipped with a backup function to ensure access to system contents even in the event of an unexpected error. Simply press the manual override button located at the bottom of the user interface to bypass the system software and open an aisle. To maintain safety, the system disregards sensor input during manual override, requiring the button to be held down during movement. Additionally, if an aisle is protected via access control, authorization is necessary before the manual override can be activated.

Emergency

Fire pARK

Integrate Your Bruynzeel System with Building Fire Alarms: Opt for the option to connect our system to your building's fire alarm for enhanced safety measures. In the event of a fire alarm, the system will automatically transition into a "fire park" position, creating small openings between all mobile units to facilitate effective fire extinguishing or fire tracing. Simultaneously, an acoustic warning will sound, alerting users to the emergency.

Emergency

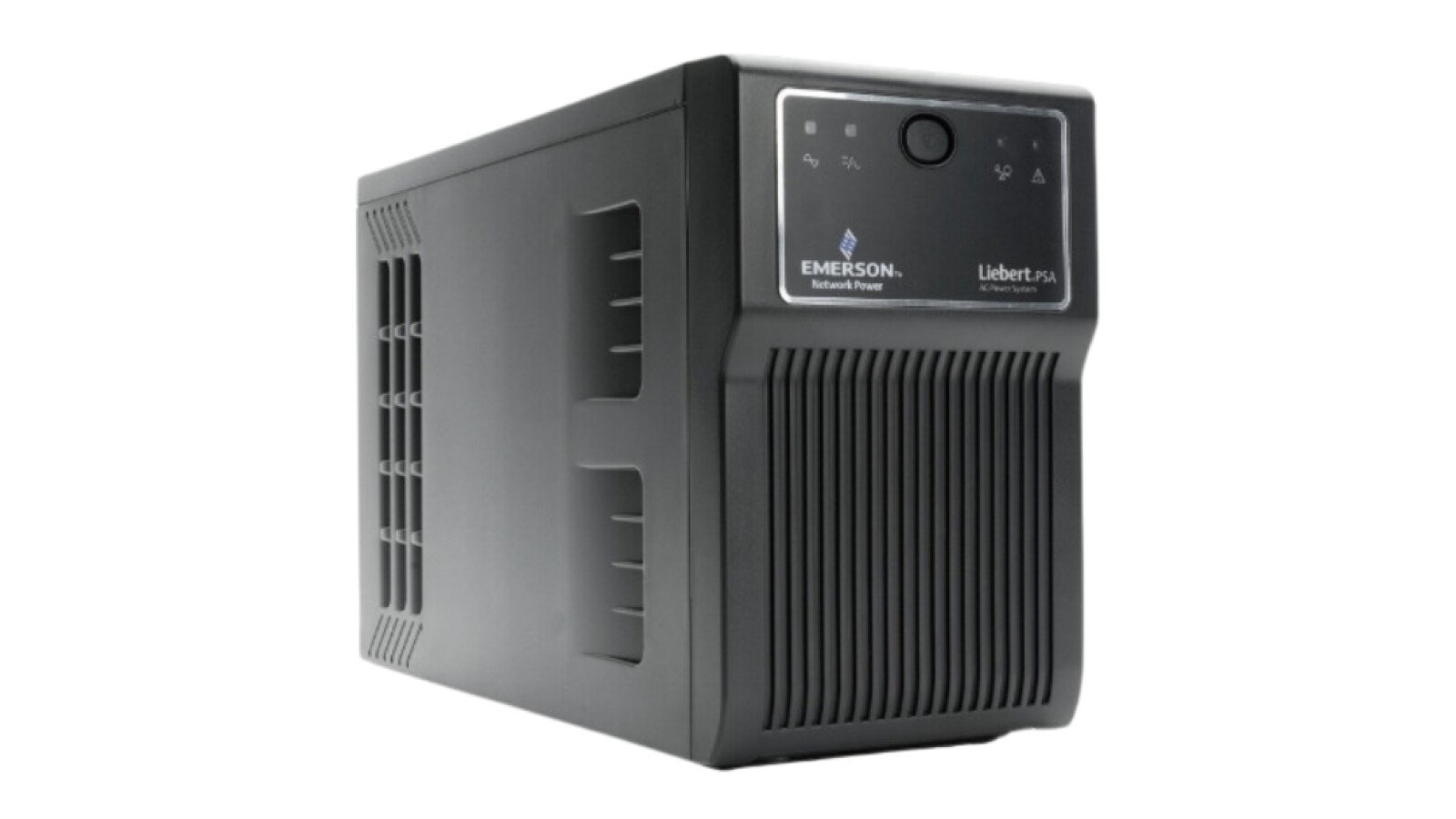

Battery back-up

During a power failure, the battery backup seamlessly takes over the power supply, ensuring uninterrupted access to the electronic installations. With guaranteed full functionality for at least 30 minutes under normal use, the backup power system provides peace of mind, regardless of the load or the number of mobiles in operation.

Access & Security

Access control

The Dynamic II system boasts Access Control functionality, allowing users to lock aisles using either a PIN-code or RFID access card. This ensures that only authorized users have access to the aisle and its contents. For enhanced security, we offer a compatible external card reader option, enabling seamless integration of the mobile shelving system's access control with existing building access control systems.

Access & Security

Securitymaster^®

Ensure Security with Lockable Mobile Blocks: Mobile blocks can be electronically or mechanically locked, providing robust protection against unauthorized access. Electronic locking systems detect and resist forced entry attempts, triggering an acoustic alarm for immediate notification. Aisles protected by Access Control are automatically locked, with the operating software detecting any unauthorized attempts to open them by force. The system actively prevents opening aisles by human force and activates alarms as a deterrent. For added security, items are hidden in the Dynamic II ControlMaster® app for users without access rights to the system or specific aisles.

Functional Features

Ventilation mode

Introducing User-Programmable Ventilation Mode: Our system features a convenient ventilation mode that enables airflow through the system during customizable time periods. Users can program ventilation settings for each day of the week, ensuring optimal airflow management tailored to specific needs and schedules.

Functional features

Library mode

Introducing Library Mode for Enhanced Accessibility: In environments like libraries requiring open access to all aisles at certain times, our system offers a unique feature. Users can create aisles ranging from 800mm to 1200mm between each mobile shelving unit, facilitating easy movement and access. With the specifically designed "library mode" in our electronic mobile system, Dynamic II, users can effortlessly open all aisles at once for full access to the system or close all aisles to free up floor space for events, gatherings, or presentations. Administrators can utilize the PIN code on the displays to activate these functions, providing flexibility and convenience for both regular business hours and special events.

Functional Features

Integrated (smart) Aisle lighting

Benefit from Bruynzeel’s LED Aisle Lighting: With our innovative LED lighting solution for high-density systems, separate lighting fixtures become unnecessary. LED lighting is integrated into every cabinet of the mobile storage system, illuminating only the aisle that is opened, enhancing visibility while minimizing energy consumption. Through the Dynamic II App, users can configure the duration for which the aisle lighting remains on, ensuring efficient energy use. By switching to Bruynzeel’s LED lighting, you not only enjoy enhanced functionality but also contribute to reducing environmental impact and lowering CO2 emissions.

Certifications

Our electronic systems proudly adhere to a comprehensive set of standards and certifications to ensure the highest level of safety, quality, and performance.

These standards include:

RAL: We are committed to RAL's rigorous quality assurance processes, which certify that our products meet strict German quality and safety standards. This demonstrates our dedication to delivering reliable and long-lasting electronic systems.
EN 15095: Our electronic systems comply with the European Standard EN 15095, ensuring that they meet the necessary safety requirements for use in various applications. This certification underscores our commitment to safety and reliability in the European market.
GS (Geprüfte Sicherheit): We proudly bear the GS mark, indicating that our electronic systems have undergone rigorous safety testing to ensure they meet the highest safety standards. The GS certification assures our customers of the safety and reliability of our products.
CE (Conformité Européenne): Our electronic systems are CE marked, signifying that they meet the essential health, safety, and environmental requirements for products sold within the European Economic Area. This certification reinforces our commitment to meeting European regulatory standards
IEC (Interntional Electrotechnical Commission: The IEC certification refers to a process where products, systems, or services are evaluated and certified to meet international standards for electrical and electronic technologies, ensuring safety, quality, and interoperability, as established by the International Electrotechnical Commission.

By complying with these standards and certifications, we demonstrate our dedication to providing electronic systems that are not only technologically advanced but also safe, reliable, and environmentally responsible, ensuring the trust and satisfaction of our customers.
